Flexible Cables

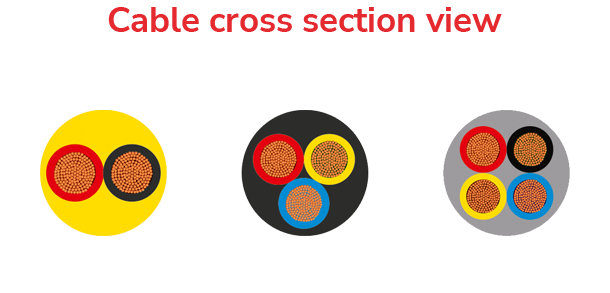

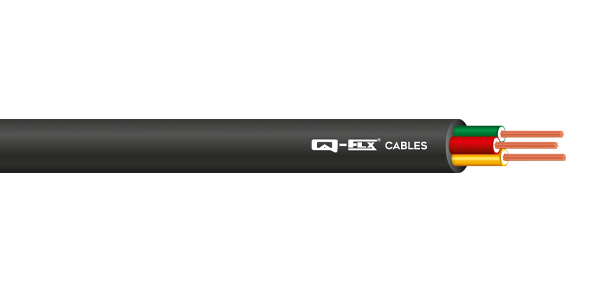

Multi Core-Flexible Cable – Round
Application

Suitable for wiring in machines, control panels, Electric power supplies etc under typical electrical installations for wiring in various electrical installations in dry and damp interiors.

Technical Data
  • Approvals: IS 694 marked, FIA/TAC
  • Voltage Grade: Up to and Including 1100V
  • Conductor: Bright annealed bare electrolytic grade Copper conductor as per IS 8130:2013
  • Insulation: The insulation is PVC compound Type D of general purpose as per IS 5831.
Sheath: The sheath is of PVC compound Type ST3 in case of general purpose PVC.
  • Colour Code of Cores:
    • 2 core – ● Red and ● Black.
    • 3 core – ● Red, ● Black and ● Yellow - ●Green / ● Red, ● Yellow and ● Blue.
    • 4 core – ● Red, ● Yellow, ● Blue and ● Yellow - ● Green / ●Red, ● Yellow, ● Blue and ● Black.
    • Note: Any other Colour up on specific request will be provided.

  • Sheath Colour: Black Any other colour as per customer requirement.
  • Packing: Standard Packing : Supplied in 100 Meter Coil Polythene Wrapping & Also available 300mtr, 500mtr & 1000mtr on non returnable Wooden Drum on request. Longer lengths available on request
  • Marking : The cables are printed with marking of “Q-FLX Cables (Size) Sq.mm x (Core) YY 1100V IS 694 ISLCM/L-1115123”

Product Features
101 % Copper Conductivity, (IACS) Extra Annealing
100% Bunched Copper Longer Service Life

Product Variants Available
PRODUCT TYPE SPECIFICATION
Normal PVC 70°C IS 694, IS 8130 :2013 Class 5 ,IS 5831 TYPE D Insulation & ST-3 Sheath
HR PVC 85°C IS 694, IS 8130 :2013 Class 5 ,IS 5831 TYPE C Insulation & ST-2 Sheath
FR PVC 70°C IS 694, IS 8130 :2013 Class 5 ,IS 5831 TYPE D Insulation + ST-3 (FR) Sheath
HR PVC 85°C + FR IS 694, IS 8130 :2013 Class 5 ,IS 5831 TYPE C Insulation + ST-2 (FR) Sheath
FR-LSH IS 694 IS 8130 :2013 Class 5 ,IS 5831 TYPE D Insulation + ST-3 (FR-LSH) Sheath

Technical Specification:
PVC Insulated and PVC Sheathed Flexible Cables (Circular) with Copper conductor for working voltages up to and including 1100V
Nominal Area of
Conductor		 Number and
Nominal Diameter
of Wire		 Nominal Thickness
of insulation		 Nominal Sheathing
Wall Thickness		 Overall Dimension,
Maximum		 Conductor
Resistance
at 20°C
(Maximum)
      Single Core Two Core Three Core Four Core Five Core Single Core Two Core Three Core Four Core Five Core
mm2 mm mm mm mm mm mm mm mm mm mm mm mm Ohm/km
0.5 16 /0.20 0.6 0.9 0.9 0.9 0.9 0.9 4.3 6.9 7.3 8.0 8.7 39.00
0.75 24 /0.20 0.6 0.9 0.9 0.9 0.9 0.9 4.5 7.3 7.7 8.4 9.2 26.00
1 32 /0.20 0.6 0.9 0.9 0.9 0.9 1.0 4.7 7.6 8.1 8.8 9.6 19.50
1.5 30 /0.25 0.6 0.9 0.9 0.9 1.0 1.0 5.4 8.9 9.4 10.4 11.4 13.30
2.5 50 /0.25 0.7 1.0 1.0 1.0 1.0 1.0 6.2 10.3 10.9 12.0 13.2 7.98
4 56 /0.30 0.8 1.0 1.0 1.0 1.0 1.1 6.8 11.6 12.4 13.6 15.3 4.95
6 84 /0.30 0.8 1.1 1.1 1.2 1.2 – 7.5 13.0 13.8 15.47 – 3.30
10 80 /0.40 1.0 1.3 1.3 1.4 1.4 – 9.4 16.5 17.69 19.5 – 1.91
16 126 /0.40 1.0 1.4 1.4 1.4 1.4 – 10.9 19.4 20.6 23.0 – 1.21
25 196 /0.40 1.2 1.4 1.4 1.5 1.6 – 13.6 23.8 25.6 28.5 – 0.78
35 276 /0.40 1.2 1.6 1.6 1.6 1.7 – 15.5 27.2 29.3 32.7 – 0.554
50 396 /0.40 1.4 2.0 2.0 2.0 2.0 – 18.1 32.0 34.6 38.6 – 0.386

**As per Class 5 Conductors of IS 8130:2013 Conforms to IS 694: 2010.

Note: The number and Diameter of the conductor strands are for reference only.
The size of the conductor is determined by its resistance. it may vary within the limits of related Classes and tables of IS 8130:2013.
The above data is approximate and subject to manufacturing tolerance.
Sample Card available on request 1.0 to 4.0 Sq.mm
