Application
Suitable for wiring in machines, control panels, electric power supplies etc, under typical electrical installations for wiring in various electrical installations in dry and damp interi- ors. Onshore and offshore applications for electrical connection of drilling units,pumping stations, compressors or generators in harsh environmental conditions particularly in wet areas of machine tools and transfer lines chemical and petrochemical industry.
Technical Data
-
- Specification: IS :17048 :2018
- Voltage Grade: Up to and Including 1100V
- Conductor: Bright Annealed bare I Tinned high conductivity electrolytic grade copper wire as per Class 5 of IS : 8130 :2013/IEC -60228 Insulation: The Insulation is Halogen free flame retardant ATAR compound as per IS . 17048 :2018 Type of HFI-TP70 ANNEXURE A. (Thermoplastic) with rated Temperature of 70°C.
Sheath: The Sheath is Halogen free flame retardant ATAR compound AS PER IS : 17048 :2018 Type of HFS-TP70 Annexure B (Thermoplastic) with rated Temperature of 70°C.

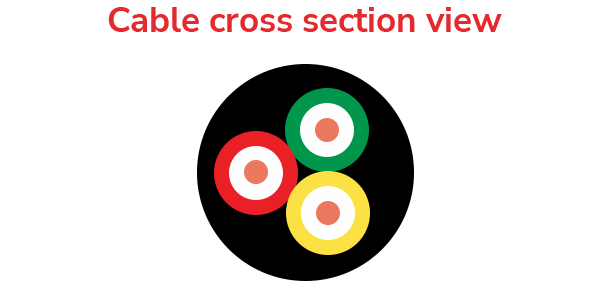

- Colour Code of Cores:
- 2 Core – ● Red and ● Black
- 3 Core – ● Red and ● Black and ● Yellow - ● Green/ ● Red, ● yellow and ● Blue
- 4 Core – ● Red, ● Yellow, ● Blue and ● Yellow - ● Green/ ● Red, ● Yellow, ● Blue and ● black
Note: Any other colour upon specific request will be provided Sheath Colour: Black any other colour as per customer requirement.
- Sheath Colour: Black any other colour as per customer requirement.
- Marking: The cables are printed with marking of Q-FLX HFFR-ATAR Cables No. of Core x (size) SQ.MM 1100 V
- Packing: Coil in 100 Metre in polythene wrapping. Longer length available on request.
Features:
| 101% copper conductivity (IACS) | 100% bunched copper |
| Higher oxygen index | Higher temprerature index |
| Low smoker density | Doesn’t contain halogen |
| Protection of human life and the environment | Time-saving assembly |
| Anti-Termite | Anti Rodent |
Product Variants:
| Product Type | Specification | |
| Insulation | Sheath | IS : 17048 : 2018 Annexure A & Annexure B |
| HFI – TP(Thermoplastic) – 70 degree C | HFS – TP(Thermoplastic) – 70 degree C | IS : 17048 : 2018 Annexure A & Annexure B |
| HFI – TP(Thermoplastic) – 70 degree C | HFS – XL(Thermoset) – 70 degree C | IS : 17048 : 2018 Annexure A & Annexure B |
| HFI – XL(Thermoset) – 90 degree C | HFS – TP(Thermoplastic) – 70 degree C | IS : 17048 : 2018 Annexure A & Annexure B |
| HFI – XL(Thermoset) – 90 degree C | HFS – TP(Thermoplastic) – 90 degree C | IS : 17048 : 2018 Annexure A & Annexure B |
| HFI – XL (Thermoset) – 90 degree C | HFS – XL(Thermoset) – 90 degree C | IS : 17048 : 2018 Annexure A & Annexure B |
TECHNICAL SPECIFICATION
Single Core HFFR Insulated & Sheathed Cable 1100 V
| Nominal Area of Conductor |
Number and Nominal Diameter of Wire |
Nominal Thickness of insulation |
Nominal Sheathing Wall Thickness |
Overall Dimension, Maximum |
Conductor Resistance at 20°C (Maximum) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Core | Two Core | Three Core | Four Core | Five Core | Single Core | Two Core | Three Core | Four Core | Five Core | ||||
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Ohm(fl)/km |
| 0.5 | 16 /0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 4.3 | 6.9 | 7.3 | 8.0 | 8.7 | 39.00 |
| 0.75 | 24 /0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 4.5 | 7.3 | 7.7 | 8.4 | 9.2 | 26.00 |
| 1 | 32 /0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 4.7 | 7.6 | 8.1 | 8.8 | 9.6 | 19.50 |
| 1.5 | 30 /0.25 | 0.6 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 5.4 | 8.9 | 9.4 | 10.4 | 11.4 | 13.30 |
| 2.5 | 50 /0.25 | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 6.2 | 10.3 | 10.9 | 12.0 | 13.2 | 7.98 |
| 4 | 56 /0.30 | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.4 | 7.0 | 7.6 | 12.5 | 14.1 | 15.4 | 4.95 |
| 6 | 84 /0.30 | 0.8 | 1.2 | 1.4 | 1.4 | 1.4 | – | 8.1 | 13.7 | 14.8 | 16.7 | – | 3.30 |
| 10 | 80 /0.40 | 1.0 | 1.2 | 1.5 | 1.5 | 1.6 | – | 9.6 | 16.7 | 18.1 | 20.3 | – | 1.91 |
| 16 | 126 /0.40 | 1.0 | 1.3 | 1.5 | 1.6 | 1.7 | – | 10.7 | 19.1 | 20.6 | 23.1 | – | 1.21 |
| 25 | 196 /0.40 | 1.2 | 1.3 | 1.7 | 1.7 | 1.8 | – | 12.7 | 22.9 | 24.8 | 27.8 | – | 0.78 |
| 35 | 276 /0.40 | 1.2 | 1.4 | 1.8 | 1.8 | 1.9 | – | 14.2 | 25.9 | 28.0 | 31.4 | – | 0.554 |
| 50 | 396 /0.40 | 1.4 | 1.5 | 1.9 | 2.0 | 2.1 | – | 16.5 | 30.6 | 33.1 | 37.1 | – | 0.356 |
Halogen Free Flame Retardant (HFFR/LSOH)
| Test | Function | Specification |
Specified Value |
| Critical Oxygen Index | To determine the percentage of oxygen required for combustion of insulating material at room temperature | IS:10810 (PART 58) :1998 | Oxygen Index shall not be less than 31% |
| Temperature Index | To determine at what temperature normal oxygen content of 21% in air will support combustion of insulating material | IIS:10810 (PART 64) :2003 | Temperature Index should be minimum 250°C at 21% of Oxygen |
| Assessment of Halogen | To ascertain the amount of Hydrochloric acid gas evolved from insulation of wire under fire |
IS:10810 (PART 59) :1988 | ≤ 0.5% |
| Smoke Density | To determine the amount of Smoke emitted | IS:10810 (PART 63) :1993 | The Minimum transmittance of lights shall be 70% |
