Submersible Cables

Q-FLX Wires & Cables Manufactures 3 core flat cables for use in submersible pump motors generally conforming to IS:694 – 1990, with annealed plain electrolytic grade high conductive copper conductor conforming to IS:8130 – 1984 and extruded with specially formulated.
Q-FLX brand PVC Compound for insulation and sheath to withstand any instantaneous surge voltage and current and impervious to water, grease, oil etc.

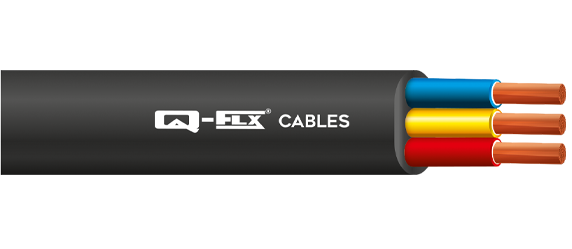

3 Core Flat - Submersible Cables

Application

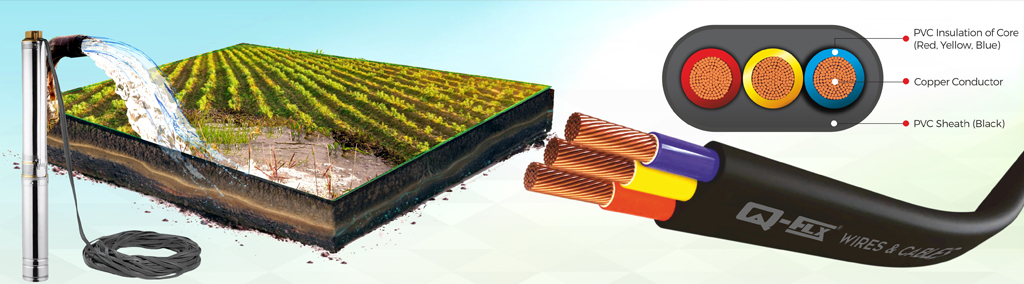

Suitable for giving the power connection in submersible pump motors used mainly for Agricultural practices where the cable needs to be tough and resistant to water.

Technical Data

Approvals: IS 694 marked, FIA/TAC
Voltage Grade: Up to and Including 1100V
Conductor: Bright annealed bare electrolytic grade Copper conductor as per IS 8130:2013
Insulation: The insulation is PVC compound Type D of general purpose as per IS 5831.

Sheath: The sheath is of PVC compound Type ST1 of IS 5831

Core Colour:

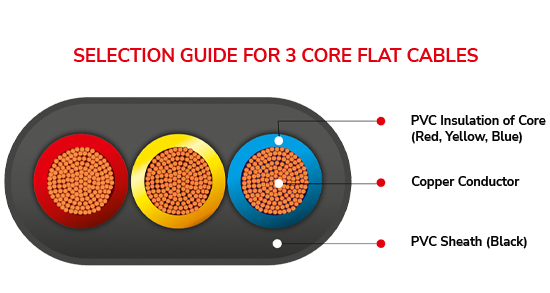

- ● Red, ● Yellow, ● Blue

Sheath Colour: Black
Packing: 200 mtr and 500 mtrs in Polythene wrapping & also available in 500 mtr. & 1000 mtr. wooden drums on request. Longer lengths available on request.
Marking : The cables are printed with marking of “Q-FLX Cables (Size) Sq.mm x 3Core Flat YY 1100V IS 694 ISI CM/L-1115123”

Product Features

101 % Copper Conductivity, (IACS)	Extra Annealing
100% Bunched Copper	Longer Service Life
Higher Current Rating

Technical Specification:
Three Core Flat PVC Insulated and Sheathed Cable for working voltages up to and including 1100V

Nominal Area of Conductor	Number and Nominal Diameter of Wire	Nominal Thickness of insulation	Nominal Thickness of Sheath	Three Core Flat	Conductor Resistance at 20°C (Maximum)
				*Overall Dimension, Max (WH )**
mm2	mm	mm	mm	mm	Ohm/km
1.5	22 /030*	0.6	0.9	12.0 x 5.6	12.1
2.5	36 /030*	0.7	1.0	13.0 x 6.2	7.41
4.0	56 /0.30*	0.8	1.0	15.3 x 7.1	4.95
6.0	84 /0.30**	0.8	1.1	19.2 x 10.4	3.30
10	80 /0.40**	1.0	1.4	24.2 x 10.4	1.91
16.0	126 /0.40**	1.0	1.4	29.0 x 12.4	1.21

*As per Class 2 Conductors of IS 8130:2013 **As per Class 5 Conductors of IS 8130:2013 Conforms to IS 694 : 2010.

Note:
The number and Diameter of the conductor strands are for reference only.
The size of the conductor is determined by its resistance. it may vary within the limits of related Classes and tables of IS 8130:2013.
The above data is approximate and subject to manufacturing tolerance.
Sample Card available on request 1.0 to 4.0 Sq.mm
