Solar Cable
Photovoltaic Cable
Application
DC Solar cables are designed for connecting photovoltaic power supply systems. Essentially used for connecting the photovoltaic panels to the junction Box /Inverter.
These flexible cables can be used both indoor and outdoor for flexible and fixed installations. Q-FLX DC SOLAR cables are also designed for a maximum permissible DC voltage of 1.8 Kv, Ambient temperature range of -40 °C to +90 °C and 120 °C on the conductor.
Technical Data - Type 1
- Standard: TUV SPECIFICATION BS EN 50618:2014
- Voltage Grade: Up to and Including 1100V
- Conductor: Bright Fine Tinned Electrolytic grade bunched flexible copper conductor with 99.97% purity and 101% conductivity As per BS EN 60228: 2005 Class 5
- Insuation: Cross-linked Polyolefin Halogen-free Flame-retardant Compound with UV and Ozone protection properties.
Sheath: Cross-linked Polyolefin Halogen-free Flame-retardant Compound with UV and Ozone protection properties.
- Cores Identification: Red, Black or Natural
- Sheath Colour: Black

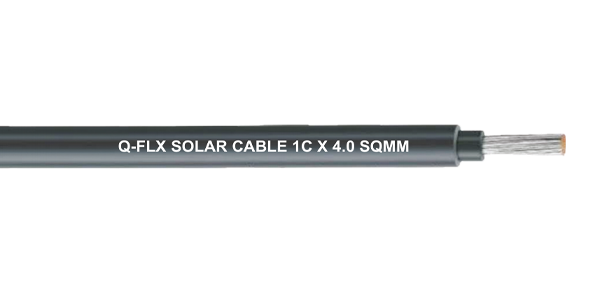

- Marking: The Cables are Printed with marking of Q-FLX SOLAR DC CABLES 1C X 4.0 SQ.MM as per EN 50618
- Packing: Coil in 100 and 200 m in polythene wrapping (OR) As per customer requirement.
Product Features
| Designed to have a long life of more than 25 Years even under harsh conditions. | UV and Ozone resistant. |
| Carefully designed to withstand extreme weather conditions. | Higher operating temperature range |
| Excellent resistance to heat pressure |
Electrical Characteristics
| Rated DC Voltage: 1.5 KV | Rated AC Voltage: 0.6/1.0 kV |
| Maximum permitted AC Voltage: 0.7/1.2 KV | Maximum permitted DC Voltage: 1.8 Kv (Conductor/conductor, non-earthed system, circuit not under load) 0 |
| Working Voltage: DC 1000 V | Insulation Resistance: 1000 M Ohm-Km |
| Spark Test: 6000 Vac (8400 Vdc) | Bending radius: Dynamic>5 x OD Static>4 x OD |
| Voltage Withstand: 6500 V as per EN50395 for 5 Min. | Ampacity: According to requirements of cables for PV systems |
Technical Data Sheet for Solar Cable
| TYPE 1 | |||||||||||||||||||
| Dimension of Solar D.C Cables from PV Module to Array Junction Box (As per TUV Specification BS EN – 50618:2014) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cross sectional area of the conductor | Max. Wire Diameter of Conductor | No.of Wire (Nos) | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Mean Overall Diameter Upper Limit Informative Value | Current Rating under according to method of installation | Conductor Resistance at 20°C Max. (Tinned Copper) | ||||||||||||
| Single Cable Free in air | Single Cable on a surface | Two loaded cable touching on a surface | |||||||||||||||||
| sq.mm | mm | mm | mm | mm | mm | Amp | Amp | Amp | Ohm(fl)/km | ||||||||||
| 1.5 | 0.26 | 30 | 0.7 | 0.8 | 5.4 | 30 | 29 | 24 | 13.7 | ||||||||||
| 2.5 | 0.26 | 50 | 0.7 | 0.8 | 5.9 | 41 | 39 | 33 | 8.21 | ||||||||||
| 4.0 | 0.31 | 56 | 0.7 | 0.8 | 6.6 | 55 | 52 | 44 | 5.09 | ||||||||||
| 6.0 | 0.31 | 84 | 0.7 | 0.8 | 7.4 | 70 | 67 | 57 | 3.39 | ||||||||||
| Dimension of Solar D.C Cables from Array Junction box to Main Junction Box & MJB to inverter (As per TUV Specification – BS EN – 50618:2014 ) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.41 | 80 | 0.7 | 0.8 | 8.8 | 98 | 93 | 79 | 1.95 |
| 16 | 0.41 | 126 | 0.7 | 0.9 | 10.1 | 132 | 125 | 107 | 1.24 |
| 25 | 0.41 | 196 | 0.9 | 1.0 | 12.5 | 176 | 167 | 142 | 0.795 |
| 35 | 0.41 | 276 | 0.9 | 1.1 | 14.0 | 218 | 207 | 176 | 0.565 |
| 50 | 0.41 | 396 | 1.0 | 1.2 | 16.3 | 276 | 262 | 221 | 0.393 |
| 70 | 0.51 | 357 | 1.1 | 1.2 | 18.7 | 347 | 330 | 278 | 0.277 |
| 95 | 0.51 | 475 | 1.1 | 1.3 | 20.8 | 416 | 395 | 333 | 0.210 |
