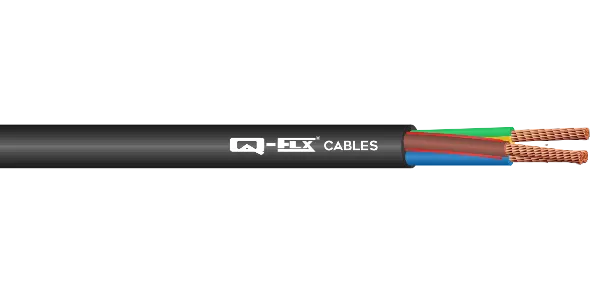

EV Charging Cables
EV Charging Cables-Public
Application
Used in electric vehicle charging equipments or charging ports, vehicle charge and discharge warning and control system with charging saturation, security warning control signal transmission function.
Technical Data
- Specification: BS EN 50620
- Voltage Grade: DC 1000V
- Conductor: Annealed Bare Copper Conductor Class 5 as per EN/IEC 60228
- Insulation: Halogen Free compound EVI-2 for power cores & EVI-1 or EVI-2 for CC/CP and also available on RoHS, Reach TPE
- Sheath: EVM-1 (Z5) or EVM-2 (Z6) Polyurethan-Halogen Free

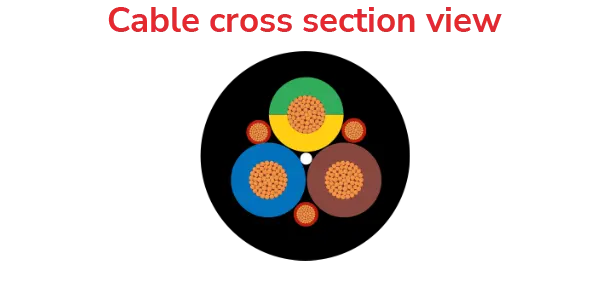

- Core Colour: Green & Yellow, Blue, Brown and also available on request
- Marking:
- Packing:
Product Features
| Flame Resistant |
| Halogen Free |
| Thermal Stress assistant |
Technical Specification
| Number and Nominal Cross Sectional Area of Conductors | Insulation Thickness | Sheath Thickness | Max. Overall Diameter | Max. |
Max. Resistance of Conductor at 20°C | |
|---|---|---|---|---|---|---|
| Single Phase |
Three Phase |
|||||
| Nos/Sq.mm | mm | mm | mm | Amps | Amps | Ohm/km |
| 3 X1.5 | 0.6 | 1.0 | 10.1 | 14 | – | 13.3 |
| 3 X2.5 | 0.6 | 1.0 | 11.5 | 25 | – | 7.98 |
| 3 X1.5 | 0.7 | 1.0 | 9.6 | 13 | – | 13.3 |
| 3 X2.5 | 0.7 | 1.0 | 10.50 | 20 | – | 7.98 |
| 5 X2.5 | 0.7 | 1.2 | 12.8 | 20 | 20 | 7.98 |
| 3 X6.0 | 0.7 | 1.2 | 12.8 | 32 | – | 3.30 |
| 5 X6.0 | 0.7 | 1.4 | 17.0 | 32 | 32 | 3.30 |
| 3 X16.0 | 0.7 | 1.5 | 20.10 | 63 | – | 1.21 |
| 5 X16.0 | 0.7 | 1.7 | 23.10 | 63 | 63 | 12.1 |
| 2×50 + 1×2.5 | 0.7 | 1.0 | 28.0 | 150 | – | |
