Application

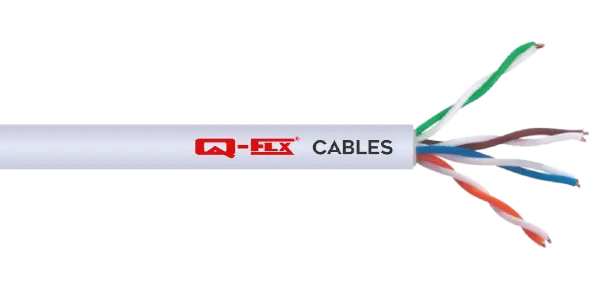

Q-FLX cables are designed for exceptional voice clarity and cross-talk elimination, making them ideal for indoor telephone wiring in various settings.
Whether in high-rise buildings, offices, hotels, residential complexes, or industrial spaces, they ensure seamless interconnection for telephone and intercom systems, PBX, and central exchanges.
These cables provide reliable connectivity for distribution frames, switching, and transmission equipment, making them perfect for offices, factories, hotels, and residential complexes.
Technical Data
- Specification: Cables are Generally made as per TEC Specification GR/WIR- 06/03.MARCH-2002 BSNL (DOT) & ITD specification S/WS113 B, S/WS 113 C ,S/WS 114 B or as per Customer specification
- Range: 1 Pair to 20 Pair (0.4/0.5mm)
- Conductor: The conductor is made of 99.97 % pure solid electrolytic grade of solid copper conforming to IS :8130 : of diameter 0.4,0.5,0.6,& 0.7 ,these cables have low conductor resistance
- Insulation: The special grade High Density polyethylene (HDPE) used for insulation
- Twisted Pairs: The insulated cores are twisted with uniform lay to form pairs and are bunched together in such a manner so as to minimise cross talk.
- Jacket: The laid up pairs are jacketed with grey color, Specially formulated Flame Retardant (FR) compound to resist flame.
- Marking: : Q-FLX 0.5 MM X 2 PAIR TELEPHONE CABLE
- Temperature Range: – 20 to +70° mm
- Storage Temperature Range : 0°C to +50°C
- Packing: Available in 100 mtr. length in polybag. Higher lengths available on special request
Product Features
| High Speed Transmission | Low Cross Talk |
| Zero Noise Level | Low Attenuation |
Construction Properties
| Construction Parameters | 1 Pair | 2 Pair | 3 Pair | 4 Pair | 5 Pair |
| Conductor (Solid annealed bare copper) | 0.4 mm diameter (nom.) & 0.5 mm diameter (nom.) | ||||
| Insulation Material (0.4 & 0.5 mm dia.) | High density polyethylene | ||||
| Insulation Thickness 0.4 mm dia. (Average) 0.5 mm dia |
0.17 mm 0.20 mm |
||||
| Diameter of Insulated 0.4 mm dia.Conductor(Maximum) 0.5 mm dia. | 0.74 mm 0.92 mm |
||||
| Rip cord (0.4 & 0.5 mm dia.) | Nylon – placed under Jacket for Jacket stripping | ||||
| Colour Combination | For 0.4 mm dia. & 0.5 mm dia. | ||||
| Pair1 | White-Blue | White-Blue | White-Blue | White-Blue | White-Blue |
| Pair2 | – | White-Orange | White-Orange | White-Orange | White-Orange |
| Pair3 | – | – | White-Green | White-Green | White-Green |
| Pair4 | – | – | – | White-Brown | White-Brown |
| Pair5 | – | – | – | – | White-Grey |
| PVC Jacket (0.4 mm dia. & 0.5 mm dia.) | FRPVC compound with high oxygen index | ||||
| Approx. Outer Diameter 0.4 mm dia.0.5 mm dia. | 2.40 2.75 |
3.10 3.50 |
3.50 4.00 |
3.90 4.70 |
4.30 5.50 |
Electrical Properties
| Electrical Parameters | 0.4 mm dia | 0.5 mm dia |
| Conductor Resistance (max.) ohms/km at 20C | 143.0 | 92.20 |
| Mutual Capacitance (max.) nf/km | 50 | 50 |
| Insulation Resistance in Air (min.) M-ohms/km | 10,000 | 10,000 |
| Capacitance Unbalance Pair to Pair (max.) pF/km | 250 | 250 |
