Communication Cable
CCTV CABLE
Application
These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance.
These strong connections are commonly used in partner the CCTV Surveillance Cameras to the DVR and NVR, retail shops ,banks, government establishments and other PC based structure.

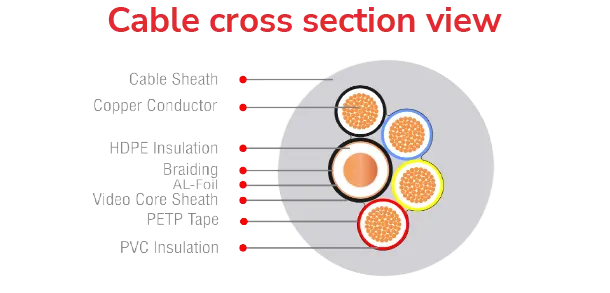

Technical Data
- Conductor: The central conductor is made of solid annealed bare electrolytic grade copper conductor.
- Insulation: The insulation provided over the conductor is HOPE with high dielectric strength and low capacitance.
- Sheath: PVC Black
- Braiding: The insulated with foamed dielectric, aluminum foil taped, jelly flooded, braided with Aluminum Alloy.
Power Cores
- Conductor: The conductor is made of Annealed flexible electrolytic grade of copper.
- Insulation: The insulation provided over the conductor is of PVC with high dielectric strength
- Separator: PETP tape
- Outer Sheath: White Colored PVC Outer Sheath as per type ST1 of IS:5831:1984
- Marking: 0.-FLX 3+1 CCTV CAMERA CABLE YY XXX METER
- Packing: 90 mtr coils packed in polyethylene wrapping Longer length available on request .
Product Features
| High Quality copper wire | Low loss characteristics reduced attenuation of the video signal |
| Complete reliability | Carries the perfect signal from the camera to your screen |
| Clear Picture eve non low frequency |
Cable Parameters
| POWER CABLE | |||
| CABLE SIZE | POWER CABLE | CCTV Cable | CCTV Cable |
| CABLE SIZE | 0.5 MM | 0.5 MM | |
| 1(a) CONDUCTOR NO OF STRANDS STRAND DIA (Nominal) |
ABC NOS MM |
1 0.5 |
1 0.5 |
| (b) INSULATION THICKNESS (Nominal) COLOUR |
HDPE MM |
0.20 Red, Yellow, Blue, Black |
0.20 Red, Yellow, Blue |
| CO-AXIAL CABLE | |||
| 2(a) CONDUCTOR INNER CONDUCTOR DIAMETER |
ABC MM |
0.80 ± 0.005 |
0.80 ± 0.005 |
| (b) INSULATION THICKNESS (Nominal) |
FOAM HDPE MM |
1.375 |
1.375 |
| 3. AL – FOIL DIA OVER INNER SHIELD WIDTH (Nominal)/COVERAGE |
AL – FOIL MM MM% |
3.75 15/100 |
3.75 15/100 |
| 4. BRAIDING WIRE DIA (Nominal) BRAIDING COVERAGE |
AL.ALLOY MM % |
0.12 60 |
0.12 60 |
| 5. CO-AXIAL OUTER SHEATH COLOURTHICKNESS (Nominal) |
PVC ST1 BLACK MM |
BLACK 0.40 |
BLACK 0.40 |
| 6. OVER ALL OUTER SHEATH COLOUR THICKNESS (Nominal) |
ST1 WHITE MM |
PVC WHITE 0.50 |
PVC WHITE 0.50 |
