Application
Cat 6 cables superior Electrical performance meeting 1000 Base-T requirement for applications such as Data Centres, Server Farms, Modern computer network systems. These cables form the back bone of modern data transmission in industries, residential and commercial infrastructure and other bandwidth intensive application.
Technical Data
- Specification: Generally confirming to EIA/TIA 568-C.2 and IEC/ISO 11801
- Category: Category 6 – 4 Pairs Unshielded Twisted Pair (UTP) Cable
- Conductor: 23 AWG Solid Bare Annealed Electrolytic Grade Copper.
- Insulation: High density polyethylene (HDPE)
- Pairs: Two Insulated conductors twisted together with unique lay
- Outer Jacket: Flame Retardant (FR) PVC Compound
- Standard Color: Grey Any other color as per customer requirement
- Cable Diameter : 6.0 mm ± 0.3 mm
- Separator: HDPE
- Rip Cord: 3 Ply Nylon

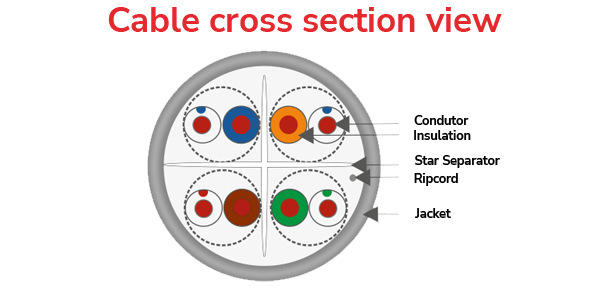

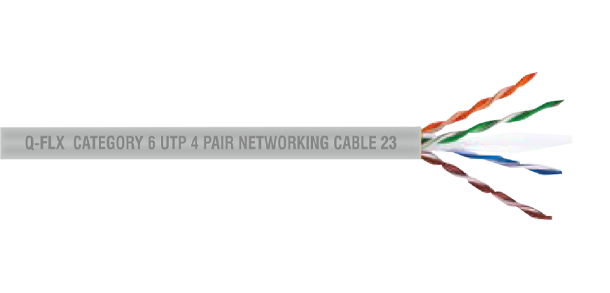

- Marking: : Q-FLX CATEGORY 6 UTP 4 PAIR NETWORKING CABLE 23 AWG COPPER FR AS PER TIA/EIA 568 C.2 AND IEC /ISO 11801 JULANYY XXX METER
- Temperature Range: – 20 to +70° mm
- Storage Temperature Range : 0°C to +50°C
- Packing: Available 100mtr. and 305 mtr. Longer length available on request .
Core Colour:
| Pair No. | Color Code |
| 1-2 | Orange -White Stripe and Orange |
| 3-4 | Blue -White Stripe and Blue |
| 5-6 | Green – White Stripe and Green |
| 7-8 | Brown -White Stripe and Brown |
Product Features
| Made of solid bare annealed 99.97% pure electrolytic grade copper. | Exceed ISO/IEC 11801, IEC 61156-5, ANSI/TIA /EIA- 568-C.2 Class E Standards backward compatible to Cat5e Applications. |
| Low attenuation and cross talk | Low structural return loss |
| Gigabyte Ethernet | Suitable for Voice, Data and Video |
| Min. radiation and max. noise immunity | Excellent electromagnetic compatibility |
| High speed data access | Prevent cross talking |
Electrical Properties
- Characteristic Impedance: 100 ± 15% Ω
- Conductor Resistance: 72.2 OHMS/KM@20 Degree C. MAX.
- Mutual Capacitance: < 5.6nF/100m
- Resistance Unbalance: 5% Max
- Capacitance Unbalance: 330pF/100m Max
- Propagation Delay Skew: 536 nS/100M
- Worst Case cable skew: 45ns/100m
- Normal Velocity of Propagation : 69%
- Operating Voltage: 72V
- Dielectric Strength: 1.0KV dc or 0.7510,/ ac for 1 min
Technical Specification:
Three Core Flat PVC Insulated and Sheathed Cable for working voltages up to and including 1100V
| FREQ | ATT max. | NEXT min. | PS.NEXT min. | ACRF min. | PS.ACRF min | Return Loss |
| (MHz) | (dB/ 100m) | (dB) | (dB) | (dB @ 100 m) | (dB @ 100 m) | (dB/ 100m) |
| 1 | 2.1 | 65.0 | 62.0 | 63.0 | 60.3 | 19 |
| 4 | 4.0 | 63.0 | 60.5 | 51.2 | 48.2 | 19 |
| 8 | 5.7 | 58.2 | 55.6 | 45.2 | 42.2 | 19 |
| 10 | 6.3 | 56.6 | 54.0 | 43.3 | 40.3 | 19 |
| 16 | 8.0 | 53.2 | 50.6 | 39.2 | 36.2 | 18 |
| 20 | 9.0 | 51.6 | 49.0 | 37.2 | 34.2 | 17.5 |
| 25 | 10.1 | 50.0 | 47.3 | 35.3 | 32.3 | 17.0 |
| 31.25 | 11.4 | 48.4 | 45.7 | 33.4 | 30.4 | 16.5 |
| 62.5 | 16.5 | 43.4 | 40.6 | 27.3 | 24.3 | 14.0 |
| 100 | 21.3 | 39.9 | 37.1 | 23.3 | 20.3 | 12.0 |
| 200 | 31.5 | 34.8 | 31.9 | 17.2 | 14.2 | 9.0 |
| 250 | 35.9 | 33.1 | 30.2 | 15.3 | 12.3 | 8.0 |
