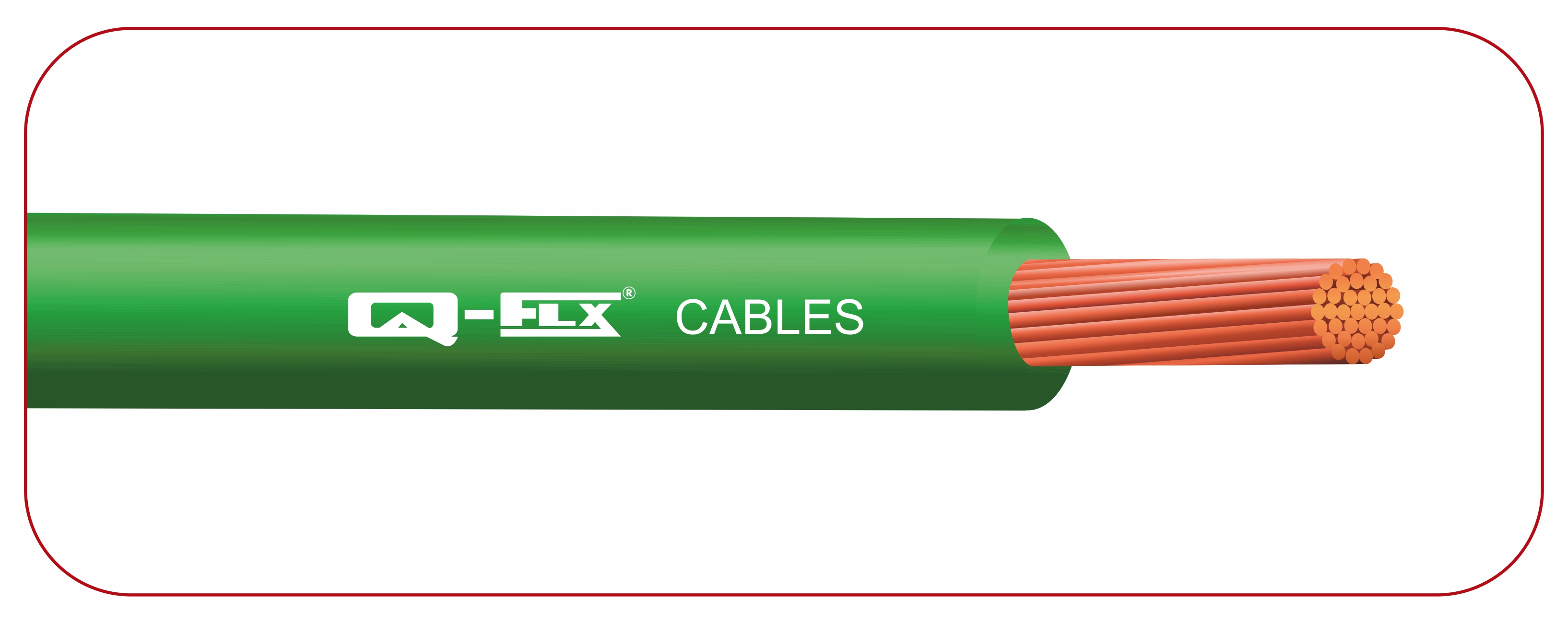

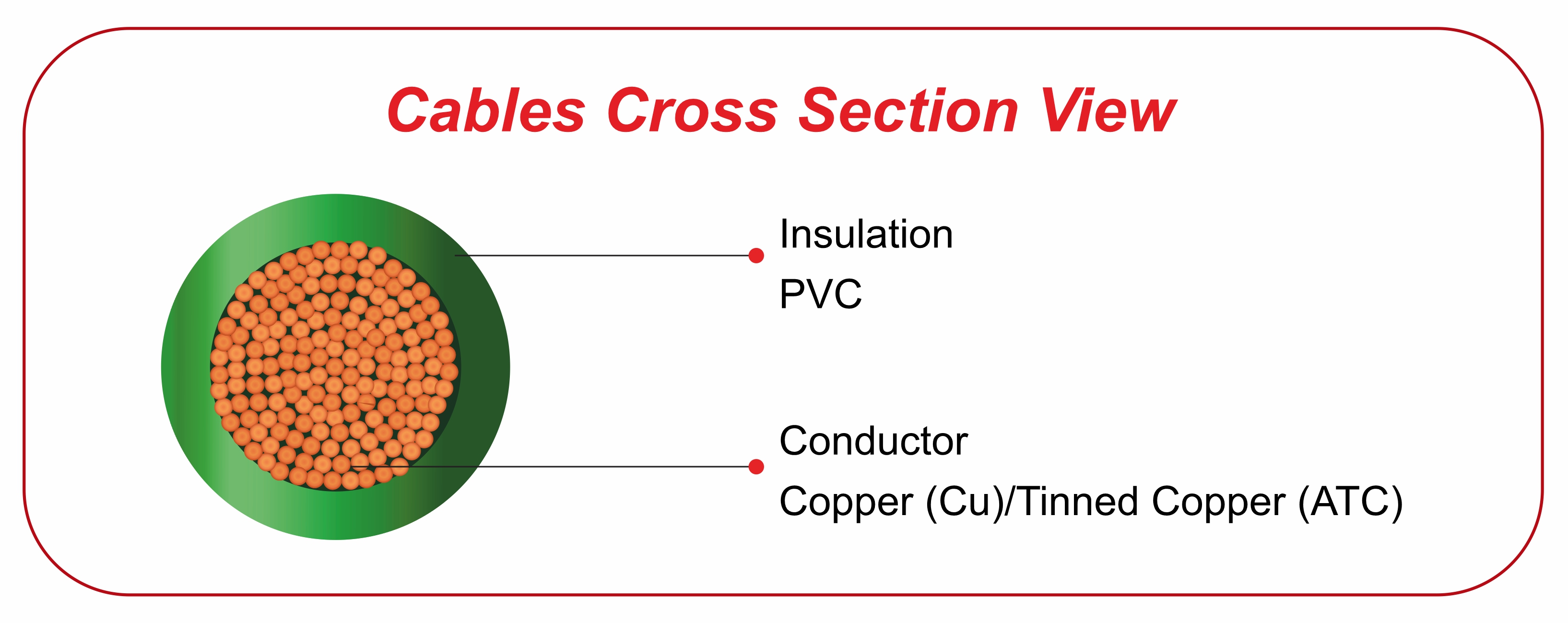

UL-1007 80Deg C (APC \ ATC)

UL-1007 80^OC (APC \ ATC)

* Internal Wiring of Household Appliances

* LED Lighting, Control Panels, and Small Transformers

* Power Supplies, Electronic Equipment.

Standard	UL-Std. 758. Complies to CSA No. 22.2 210
Nominal Volatage	300V
Test Voltage (Spark Test)	AWG 28 to 24 → 4 KV (DC) AWG 22 to 20 → 5 KV (DC) AWG 18 to 16 → 6 KV (DC) ≤ AWG 8 → 7.5 KV (DC)
Temperature Range	Flexible -5^oC to +80^oC Fixed Installation -20^oC to +80^oC
Temperature at Conductor	Max. UL and CSA: +105^oC : +80^oC
Bending Radius	Flexing 10 x Cable Ø. Fixed Installation 5 x Cable Ø

* PVC Self - extinguishing and flame retardant, test method to UL VM-1 and CSA FT 1/ FT 2

* Rated for Continuous use up to 60^oC or 80^oC in oil and 105^oC in Dry.

S.NO	AWG	Size / SQ.MM (Approx)	No of Strand Dia (MM)	Avg. Min. Conductor Dia (MM)	Approx Diameter Conductor	Avg.Insulation Thickness	Min.Insulation Thickness	Nominal Cable Dia
01	28 AWG	0.0804	7	0.125 (±0.005)	0.39	0.39	0.33	1.15 (±0.010)
02	26 AWG	0.134	7	0.160 (±0.008)	0.49	0.39	0.33	1.25 (±0.010)
03	24 AWG	0.211	7	0.200 (±0.008)	0.61	0.39	0.33	1.40 (±0.010)
04	24 AWG	0.211	11	0.165 (±0.008)	0.61	0.39	0.33	1.40 (±0.010)
05	22 AWG	0.333	7	0.250 (±0.005)	0.76	0.39	0.33	1.55 (±0.010)
06	22 AWG	0.33	17	0.165 (±0.008)	0.76	0.39	0.33	1.55 (±0.010)
07	20 AWG	0.521	7	0.315 (±0.005)	0.95	0.39	0.33	1.70 (±0.010)
08	20 AWG	0.521	26	0.165 (±0.005)	0.95	0.39	0.33	1.70 (±0.010)
09	18 AWG	0.823	16	0.260 (±0.005)	1.20	00.39	0.33	1.95 (±0.010)
10	18 AWG	0.823	41	0.165 (±0.005)	1.21	0.39	0.33	1.95 (±0.010)
11	16 AWG	1.317	26	0.260 (±0.005)	1.56	0.39	0.33	2.30 (±0.010)
