FR-Fireguard


Building Cables

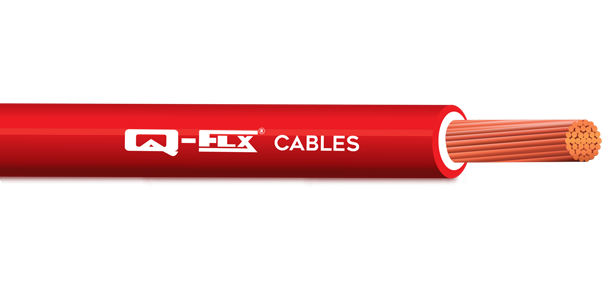

FR-Lead Free - Flame Retardant (FR LF)

Lead Free PVC Insulated Single Core Unsheathed Flexible Cables Voltage grade Upto
1100 V - IS 694:2010.
Application

Suitable for wiring in all types of residential and Commercial infrastructure, where fire and electrical safety is utmost important

Technical Data
  • Approvals: IS 694 marked, FIA/TAC
  • Voltage Grade: Up to and Including 1100V
  • Conductor: Bright annealed bare electrolytic grade Copperconductor as per IS 8130:2013
  • Insulation: Specially formulated Flame retardant LEAD-FREE. PVC Compound manufactured In-House by a team of technical experts conforming to IS 5831 which offers a High Oxygen Index and High-Temperature Index.
Insulation Conformity:
IS 5831, Type A/Type D - FR-LF
  • Colours Marking Packing: ● Red ● Black ● Green ● Yellow ● Blue or any other colour as per customer requirement.
  • Marking: The cables are printed with the marking “Q-FLX CABLES 1100V SQMM FR- LF IS 694 ISI CM/L 1115123
  • Packing: The cables are packed as 90m coil in protective cartons from 1 sq.mm to 6 sq.mm. Longer length available up on request.

Product Features
101 % Copper Conductivity, (IACS) Extra Annealing
100% Bunched Copper 100% Lead Free
Higher Oxygen Index Higher Temp. Index

Flame Retardant Properties (FR – LF)
TEST FUNCTION SPECIFICATION VALUE
Critical Oxygen Index To determine the percentage of oxygen required for combustion of insulating material at room temperature IS 10810 (Part 58): 1998 Oxygen Index shall not be less than 29%
Temperature Index To determine at what temperature normal oxygen content of 21% in air will support combustion of insulating material IS 10810 (Part 64): 2003 Temperature Index should be minimum 250°C at 21% of Oxygen

***Also meets the requirement of Flammability Test as per IS 694:2010

Technical Specification of Single Core, FR-LF PVC Insulated Unsheathed Cable 1100V
Nominal Area of
Conductor		 Number & Nominal
Diameter of Wire		 Nominal Thickness
of insulation		 Max. Overall
Diameter		 Current Rating
(Amps)		 Max. DC Conductor
Resistance at 20°C
mm2No./mmmmmmCasingConcealedOhm(fl)/km
114 /03*0.73.2141318.1
1.522 /03*0.73.3181612.1
2.536 /03*0.84.024207.41
456 /030.84.830264.95
684 /03**0.85.338333.30

***As per Class 2 Conductors of IS 8130:2013** Conforms to IS 694: 2010.

Note:

  • The number and Diameter of the conductor strands are for reference only.
  • The size of the conductor is determined by its resistance.
  • It may vary within the limits of related Classes and tables of IS 8130:2013.
  • The values given above are subject to tolerances as per relevent standards.
  • Sample Card available on request 1.0 to 4.0 Sqmm
