FR- FIRE GUARD
High quality building cable residential and commercial use
High quality building cable residential and commercial use.
High quality building cable residential and commercial use
Offering
World Class Quality..!
Building wire and cable is used in the construction of almost every commercial, industrial, and type of residential property.
Its manufactured, designed and tested according to International standards.
Most commonly known as branch circuit wiring in homes and businesses, these products carry electrical current to all power applications in a building Used in construction, commercial, industrial, residential and oil & gas projects, as branch circuits for wiring, lighting and earthing.

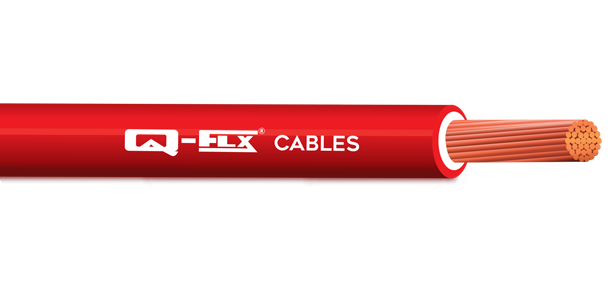

FR-Lead Free - Flame Retardant (FR LF)
Lead Free PVC Insulated Single Core Unsheathed Flexible Cables Voltage grade Up to 1100V -IS 694:2010
Application
Technical Data
- Approvals: IS 694 marked, FIA/TAC
- Voltage Grade: Up to and Including 1100V
- Conductor: Bright annealed bare electrolytic grade Copperconductor as per IS 8130:2013
- Insulation: Specially formulated Flame retardant LEAD-FREE. PVC Compound manufactured In-House by a team of technical experts conforming to IS 5831 which offers a High Oxygen Index and High-Temperature Index.
Insulation Conformity: IS 5831, Type A/Type D - FR-LF
- Colours Marking Packing: Red, Black, Green, Yellow, Blue or any other colour as per customer requirement.
- Marking: The cables are printed with the marking “Q-FLX CABLES 1100V SQMM FR- LF IS 694 ISI CM/L 1115123
- Packing: The cables are packed as 90m coil in protective cartons from 1 sq.mm to 6 sq.mm. Longer length available up on request.
Product Features
| 101 % Copper Conductivity, (IACS) | Extra Annealing |
| 100% Bunched Copper | 100% Lead Free |
| Higher Oxygen Index | Higher Temp. Index |
Flame Retardant Properties (FR – LF)
| TEST | FUNCTION | SPECIFICATION | VALUE |
| Critical Oxygen Index | To determine the percentage of oxygen required for combustion of insulating material at room temperature | IS 10810 (Part 58): 1998 | Oxygen Index shall not be less than 29% |
| Temperature Index | To determine at what temperature normal oxygen content of 21% in air will support combustion of insulating material | IS 10810 (Part 64): 2003 | Temperature Index should be minimum 250°C at 21% of Oxygen |
***Also meets the requirement of Flammability Test as per IS 694:2010
Technical Specification of Single Core, FR-LF PVC Insulated Unsheathed Cable 1100V
| Nominal Area of Conductor |
Number & Nominal Diameter of Wire |
Nominal Thickness of insulation |
Max. Overall Diameter |
Current Rating (Amps) |
Max. DC Conductor Resistance at 20°C |
|
|---|---|---|---|---|---|---|
| mm2 | No./mm | mm | mm | Casing | Concealed | Ohm(fl)/km |
| 1 | 14 /03* | 0.7 | 3.2 | 14 | 13 | 18.1 |
| 1.5 | 22 /03* | 0.7 | 3.3 | 18 | 16 | 12.1 |
| 2.5 | 36 /03* | 0.8 | 4.0 | 24 | 20 | 7.41 |
| 4 | 56 /03 | 0.8 | 4.8 | 30 | 26 | 4.95 |
| 6 | 84 /03** | 0.8 | 5.3 | 38 | 33 | 3.30 |
***As per Class 2 Conductors of IS 8130:2013** Conforms to IS 694: 2010.
Note: :
Industries
Major industries we served

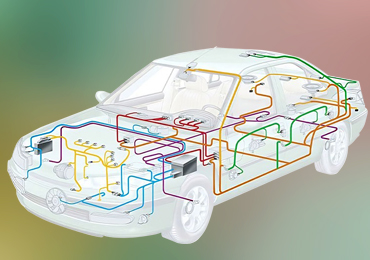

Automotive

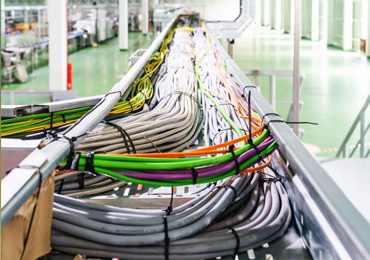

Industrial
Railways

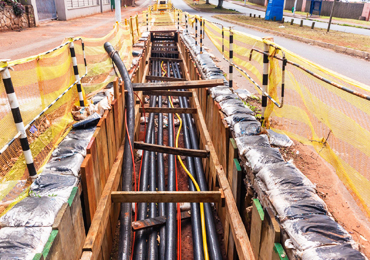

Infrastructure

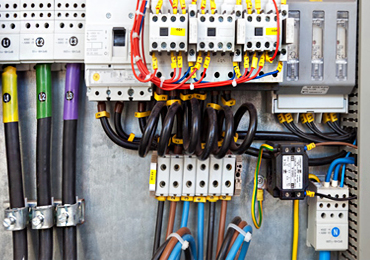

Residential

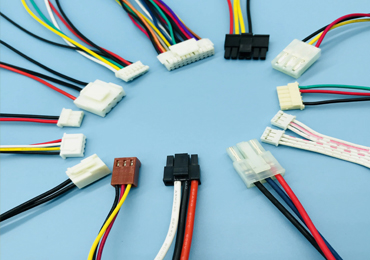

Appliances
